Mastering Drawer Slide Installation: A Comprehensive DIY Guide

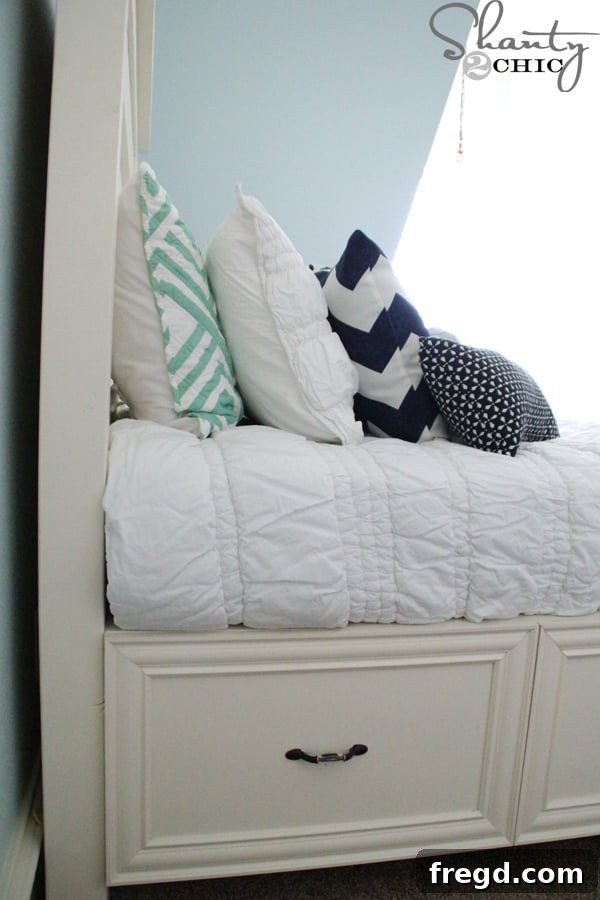

Welcome back, fellow DIY enthusiasts! After showcasing my daughter’s beautiful new storage bed last week, it became clear that the drawer slide installation deserved its own dedicated tutorial. Many of you shared the common struggle: drawers can be one of the most intimidating aspects of furniture building. For years, I faced the same challenge; no matter how meticulously I worked, my drawers often ended up with an irritating wobble or a less-than-perfect glide. Through a journey of trial and error, I’ve developed a reliable method that delivers flawless results consistently. Today, I’m thrilled to share this proven technique with you, designed to make drawer installation straightforward and satisfying.

This guide will walk you through the entire process, focusing on achieving smooth, perfectly aligned drawers, particularly for flush-face designs like those on our storage bed. By the end, you’ll gain the confidence to tackle any drawer project, turning what once might have been your woodworking nightmare into a rewarding experience.

Why Precise Drawer Installation Matters

Functioning drawers are not just about aesthetics; they are crucial for the usability and longevity of your furniture. Crooked or sticky drawers can detract significantly from a piece you’ve worked hard to create, leading to frustration every time you open or close them. Well-installed drawer slides ensure smooth operation, maximize storage efficiency, and contribute to the overall professional finish of your project. This tutorial aims to demystify the process, providing you with clear, actionable steps to achieve perfectly operating drawers, enhancing both the look and utility of your DIY storage solutions.

Essential Tools and Materials for Drawer Slide Installation

Before diving into the installation process, gather the right tools and materials. Having everything at hand will streamline your workflow and help ensure accuracy.

Tools:

• Measuring Tape: For all critical measurements. Accuracy is paramount here.
• Pencil: For precise marking on your wood components.
• Speed Square or Combination Square: Essential for drawing straight lines and ensuring square angles.
• Drill/Driver: A cordless drill is indispensable. While any drill will work, a right-angle drill (like the Ryobi Tek4 mentioned in the original project) can be incredibly helpful for tight spaces within cabinetry, offering better maneuverability.
• Drill Bits: A pilot bit, slightly smaller than your screw diameter, is crucial for preventing wood splitting, especially in hardwoods or plywood edges.
• Screwdriver Bits: Matching your screw heads (Phillips, Square, Torx).
• Level: To ensure your slides are perfectly horizontal.
• Clamps (Optional but Recommended): Can help hold slides or drawer components in place during marking or initial attachment.
• Nail Gun (Brad Nailer): For attaching the drawer face and assembling the drawer box efficiently.
• Saw (Table Saw, Circular Saw, or Miter Saw): For cutting drawer components to size.
• Safety Glasses: Always protect your eyes when working with power tools.

Materials:

• Drawer Slides: For this storage bed, we’re likely using full-extension ball-bearing slides, which are robust and allow the drawer to open completely. Ensure they are the correct length for your drawer depth.
• Appropriate Screws: Typically, the slides will come with screws. If not, choose screws that are short enough not to penetrate through your wood panels but long enough to provide a secure hold.
• Scrap Wood (3/4″ plywood in this case): Absolutely vital for setting consistent spacing and marking the precise placement of your flush drawer faces. Make sure the thickness matches that of your drawer face material.
• Plywood or Solid Wood: For constructing the drawer box itself, cut to your specific dimensions.
• Wood Glue: For strong, durable drawer box assembly (optional but highly recommended for strength).

Preparing for Installation: Understanding Your Drawer Design

Before you even pick up a drill, it’s vital to understand the type of drawer face you’re installing. In this project, we’re working with a “flush-mount” drawer face, meaning the drawer front sits perfectly even with the cabinet frame when closed. This design requires careful measurement and spacing to ensure a seamless look and smooth operation. For other designs, like “overlay” drawers (where the drawer front sits on top of the cabinet frame), the initial marking strategy might differ slightly, but the principles of slide installation remain largely the same. Always consider your design choices early in the process.

Step-by-Step Guide to Installing Drawer Slides

Step 1: Establishing the Drawer Face Position

The first critical step for a flush drawer face is to accurately determine where your drawer face will sit within the frame. This ensures the finished drawer front will be perfectly flush with the surrounding frame of your furniture piece, creating a clean, integrated look.

To achieve this, take a scrap piece of plywood (or whatever material your final drawer face will be made of – in our case, 3/4″ plywood). Place this scrap piece into the drawer opening, ensuring it’s positioned exactly where the finished drawer face will rest. Using your pencil, carefully mark the exact outline of this scrap piece on the inside of your cabinet frame. This line represents the front edge of your drawer face and will be your guide for positioning the drawer slide.

Step 2: Marking the Drawer Slide Placement

With your drawer face position clearly marked, you can now establish where the cabinet-side drawer slide will be installed. Take one half of your drawer slide – specifically, the piece designed to attach to the inside of your furniture frame. Align this slide component directly against the line you just drew. This ensures that when the drawer is fully closed, its face will sit perfectly flush with the frame, as intended. Double-check that the slide is level and positioned correctly before making any more marks or attaching it.

Step 3: Attaching the Cabinet-Side Slides

Now it’s time to secure the drawer slide to the cabinet frame. Position the slide against your marked line. While any drill can get the job done, a right-angle drill (like the Ryobi Tek4 used here) can be incredibly useful in tight spaces, offering better access and control. Start by drilling a pilot hole through one of the screw holes on the slide and into the cabinet frame. Pilot holes are essential to prevent wood splitting and ensure the screws go in straight. Once the pilot hole is ready, drive in the first screw, securing the slide firmly but not overly tight just yet, as minor adjustments might still be needed.

Step 4: Securing the Slides with Multiple Screws

To ensure maximum stability and durability, it’s crucial to use multiple screws to attach the drawer slide. After installing the first screw, carefully check that the slide is still perfectly aligned with your pencil line and level. Then, proceed to install additional screws at strategic points: one at the beginning, one in the middle, and one at the end of the slide. This three-point attachment method prevents the slide from flexing or twisting under the weight of the drawer. Repeat this entire process for the corresponding slide on the other side of the drawer opening, ensuring both slides are parallel and at the same height. This parallelism is key to a smooth-operating drawer.

Step 5: Integrating the Drawer-Side Slide Components

With the cabinet-side slides securely installed, it’s time to prepare for the drawer box. Most full-extension drawer slides consist of two main components: the fixed cabinet piece and the movable drawer piece. Gently slide the drawer-side components onto their corresponding cabinet-side slides. This “dry fit” step allows you to ensure both parts engage smoothly and are properly aligned before you attach them to the actual drawer box. It also provides a stable platform for your next crucial measurement.

Step 6: Precise Measurement for the Drawer Box Width

This is arguably the most critical measurement for a perfectly fitting drawer. With the drawer-side slides engaged and extended, measure the exact distance from the outside edge of one drawer slide to the outside edge of the other. This measurement will be the precise width of your drawer box (excluding the drawer face). It’s imperative to “measure twice, cut once” here, as even a small inaccuracy can lead to a drawer that binds or has excessive play. While the drawers for this bed were about 23 inches long, the width is specific to your installation, so always measure directly from your installed slides.

Step 7: Cutting and Testing the Drawer Bottom

Using the precise measurement from Step 6 for your drawer width, and a predetermined depth for your drawer, cut the bottom piece of your drawer box. For example, if your measurement was 20 inches, cut your drawer bottom to be 20 inches wide. Once cut, temporarily slide this bottom piece into the drawer opening, resting it on the extended drawer-side slides. This is another dry-fit to confirm that your measurement was accurate and that the bottom piece fits snugly but smoothly between the slides without binding. Adjust if necessary before proceeding with full drawer assembly.

Step 8: Assembling the Drawer Box and Attaching Slides

Now that you have confirmed your measurements, proceed to build the full drawer box. This typically involves assembling the four sides (front, back, and two sides) around the bottom piece, using wood glue and brad nails or screws for a strong joint. Once your drawer box is assembled, remove the drawer-side slide components from the cabinet and attach them securely to the sides of your newly built drawer box. Ensure they are positioned correctly and screwed in firmly to withstand the drawer’s repeated use and weight.

Step 9: Attaching the Drawer Face for a Seamless Look

The final step in achieving a polished drawer is attaching the drawer face. For a flush-mount design, precision is key. Slide your completed drawer box into the cabinet. Then, carefully align the drawer face (the decorative front piece) over the front of the drawer box, ensuring it sits perfectly flush with the cabinet frame as initially planned. To maintain a clean, screw-free exterior, attach the drawer face from the inside of the drawer box using a nail gun and brad nails. For extra security and to prevent any warping over time, a few additional nails can be added directly through the front of the drawer face into the drawer box itself. Don’t worry about these visible nail holes; they can be easily concealed later with wood filler and paint, or, as in this project, covered by decorative casing or trim for a truly seamless finish.

Enjoying Your Perfectly Functioning Storage Bed!

And just like that, you’ve completed the installation of your drawer slides! Step back and admire your handiwork. Open and close the drawer a few times, appreciating the smooth, effortless glide. If you’ve ever felt overwhelmed by building drawers or had a love-hate relationship with them, I sincerely hope this detailed tutorial empowers you to approach your next woodworking project with newfound confidence. Achieving these professional results is incredibly rewarding and will undoubtedly enhance the functionality and beauty of your DIY storage bed.

Troubleshooting Common Drawer Slide Issues

Even with careful planning, sometimes issues arise. Here are quick tips for common problems:

• Drawer Binds or Sticks: Often due to slides not being perfectly parallel or level. Recheck your measurements and use a level to adjust slide placement. Ensure no screws are protruding or interfering with the slide mechanism.
• Uneven Gaps Around Drawer Face: This indicates the drawer face was not attached perfectly straight or centered. You may need to remove the face and re-attach it with more precision.
• Drawer Wobbles: Can be caused by loose screws, a poorly constructed drawer box, or insufficient support in the cabinet frame. Ensure all screws are tight and the drawer box joints are solid.
• Drawer Doesn’t Close Fully: Check for obstructions inside the cabinet or issues with the slide mechanism itself. Sometimes, the drawer slides need to be adjusted slightly further back.

Conclusion: Build with Confidence

Building functional and beautiful drawers doesn’t have to be a source of frustration. By following these precise steps and paying close attention to detail, you can achieve professional-quality drawer slide installation for your storage bed or any other furniture piece. This process, once intimidating, can become one of the most satisfying parts of your woodworking journey. Embrace the challenge, enjoy the process, and take pride in your perfectly operating drawers!

Thanks so much for stopping by and happy building!

~Ashley
